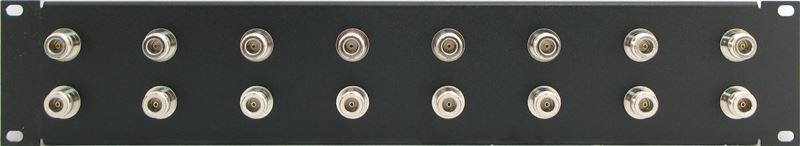

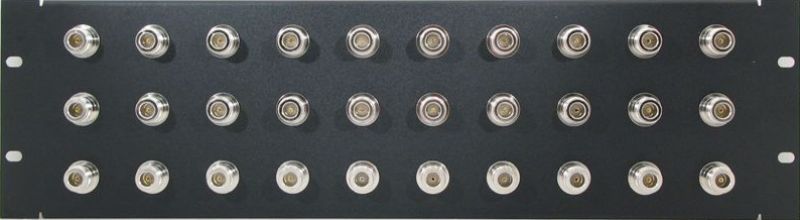

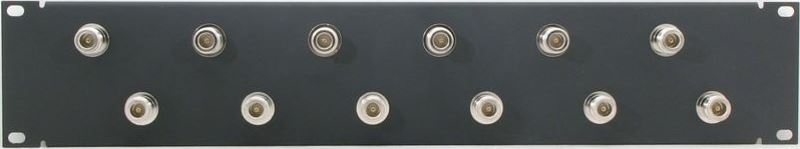

N Patch Panels Loaded with N Female to N Female Bulkheads

Nominal Impedance: 50 Ohms
Frequency Range: 0-11 GHz * Voltage Rating: AC500V
Withstanding Voltage: 1500 Volts RMS
Temperature Range: -40 to +165 Centigrade
Insulation Resistance: 5,000 Megohms Min
Shock: Method 213, Mil Std 202
Moisture: Method 204, Mil Std 202
Body Housing: Brass
Male Contact: Brass, Gold Plated
Female Contact: Brass, Gold Plated
Gasket: Silicone Rubber
Dielectric: Teflon,Delrin, or PBT
Mating for N connectors by 5/8-24 threaded coupling

Any labeling options available for these panels? - Panel Labeling Options
What are the dimensions and layout for the panels? - N Panel Specs

N to N Patch Panels - N Female on front to N Female on rear

Spaces Description Stock Number Price Each Order Quantity Order
1 RU 8 Port N Female to N Female Patch Panel PPN8 $109.99

1 RU 12 Port N Female to N Female Patch Panel PPN12 $159.99
